Containerized Mobile Incinerator(CA Model)
HICLOVER now offer a full range of containerized incineration systems, placing us at the forefront of the latest transportation andindustrial trends. Containerization enables immediate waste management as the units are pre-assembled and pre-installed.
Containerization is the most feasible and viable option in contrast to the construction of on-site facilities and housing structures, eliminating the man power and costs involved. The system has the added benefit of totalmobility (both local and international), and is ideal for military and civil camps and remote locations where infrastructure is scarce.
Nanjing Clover Medical Technology Co.,Ltd.Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com
Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC) Burn Rate (Average) 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour Feed Capacity(Average) 20kg 40kg 60kg 100kg 200 kg Control Mode PLC PLC PLC PLC PLC Combustion Chamber 100L 210L 330L 560L 1200L Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm Secondary Chamber 50L 110L 180L 280L 600L Smoke Filter Chamber Yes Yes Yes Yes Yes Feed Mode Manual Manual Manual Manual Manual Voltage 220V 220V 220V 220V 220V Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28 Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2 Temperature Monitor Yes Yes Yes Yes Yes Temperature Protection Yes Yes Yes Yes Yes Oil Tank 100L 100L 100L 100L 200L Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm Chimney 3Meter 3Meter 5Meter 5Meter 10Meter Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel 1st. Chamber Temperature 800℃–1000℃ 800℃–1000℃ 800℃–1000℃ 800℃–1000℃ 800℃–1000℃ 2nd. Chamber Temperature 1000℃-1200℃ 1000℃-1200℃ 1000℃-1200℃ 1000℃-1200℃ 1000℃-1200℃ Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm The process of incineration provides the advantage of volume reduction as well as the ability to dispose of recognizable
waste and sharps. On site incinerators provide a quick and easy way of disposing medical waste. This is the most widelyaccepted and feasible method of managing highly infectious waste.
The incinerator will be of the controlled air type, designed for (6-8) hour-day operations and rated at 75 kg per hour.The incinerator plant will include the following:
• Continuous loading using hydraulic ram feeder o Burners and fuel system
o Fans
o Pumps
o Controls and Instrumentation o Chimney and flue connections
o Incinerator loader for loading hoppers or carts o Ash handling equipment
• 1 year spare parts
• Waste weighing equipment
• Wheeled 2.0m3 waste storage hoppers (number to be decided by hospital managers)
• Incinerator loader
• Incinerator building, including fire safety equipment
Incinerator with Dry Scrubber 100 kg/hra) Regulator : 1 no
b) Pyrometric Cane : 1 no
c) Burner’s Control Box : 1 no
d) Spark Electrode : 1 no
e) Flame Cell Detection : 1 no
f) Lime Stone : 1 no

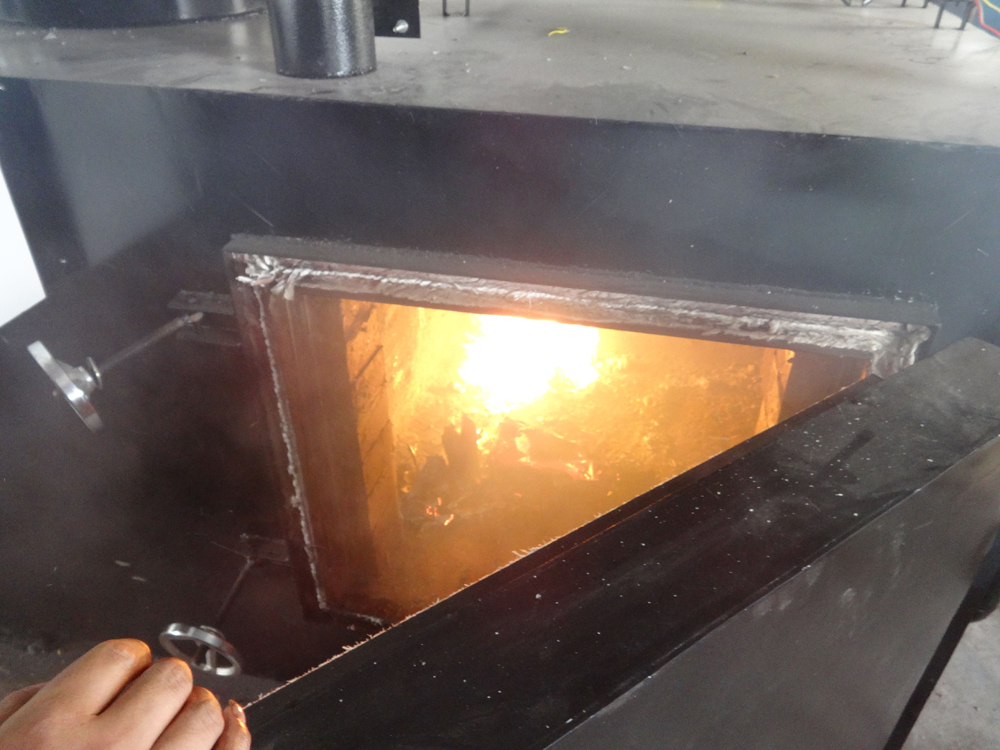

g) Chamber of Combustion with door of load : 1 no
h) Burner of Combustion PRESS GV-1 allure : 1 no
i) Chamber of post combustion : 1 no
j) Burner post combustion PRESS GW-2 allure : 1 no

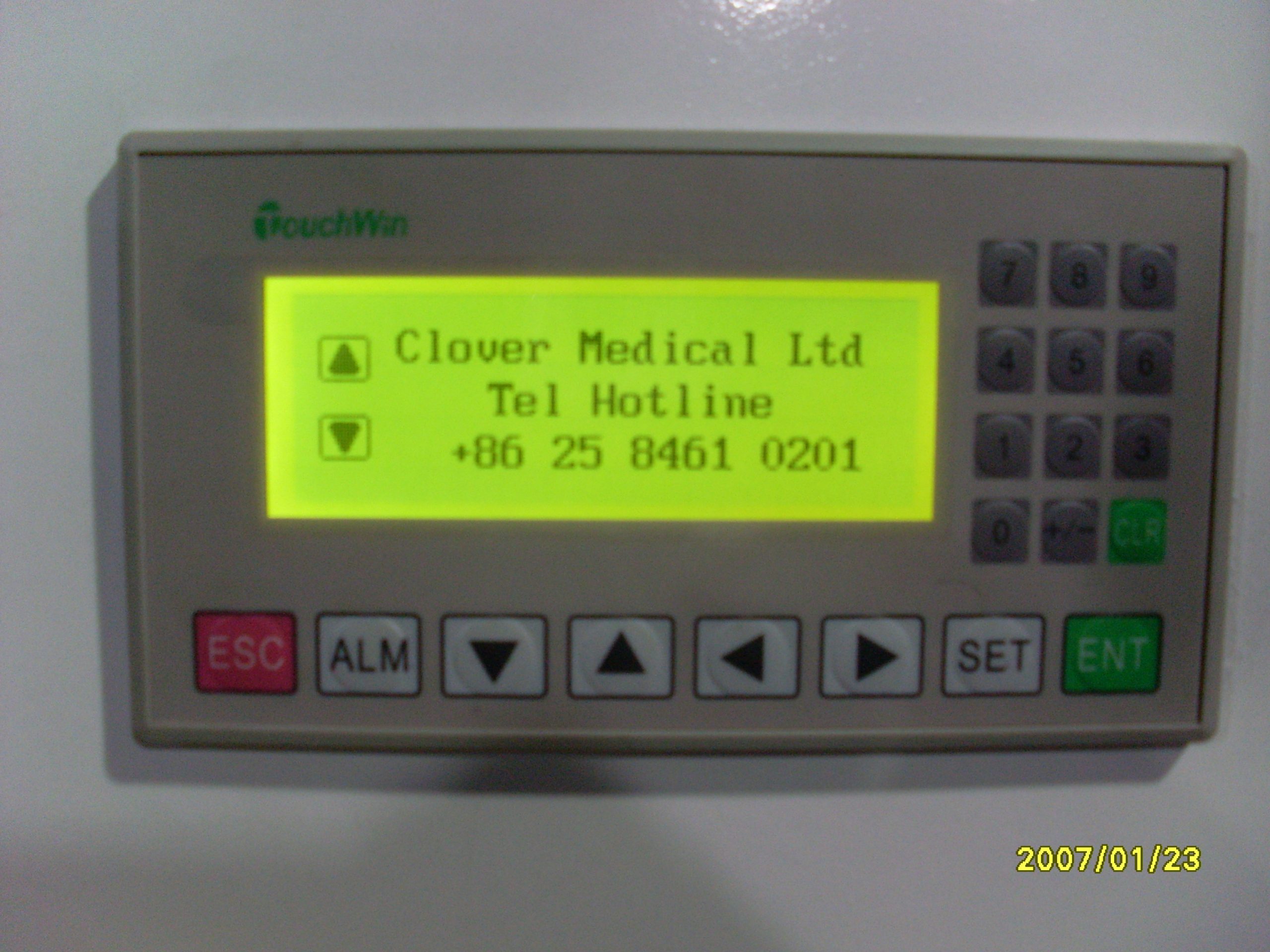

k) Electric panel : 1 no
l) Air fan : 1 no
m) Concreted Elements : 3 nos
n) Dry Washer : 1 no
o) Chimney Inox : 1 no
